Tuesday, July 27, 2010

Bye-Bye Old Scary Stairs

Its Time for a Deconstruction.

Okay, Today's the day to deconstruct the rear stairs....I've been trying to put it off as long as possible but they are getting more and more unstable and I feel veering towards being officially unsafe soooo.....

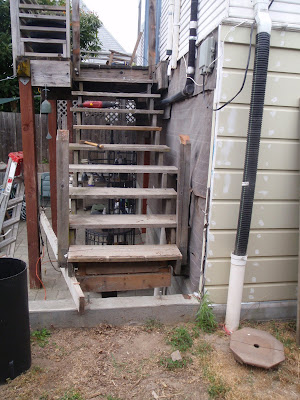

Just to remind everyone, here's the stairs...with the super slippery unsafe ramp that I slapped on a couple years ago...

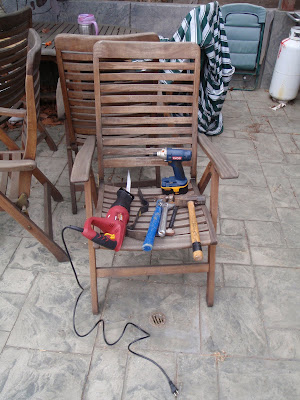

Here are all the tools I think that I'm going to need to do the deconstruction. I'm using the term deconstruct instead of demo because I'm not going to be smashing things with 20# sledges. I'll be unscrewing and cutting nails to take the rear stairs apart.
Yes, on the left is a super-fab $20 Harbor Fright sawzall...at that price, its pretty much disposable...I did put a decent demo blade on it and I'm hoping it will last thru this project and the siding project.



After removing the ramp I was treated to this scary sight. The wing-dings that built this stair used untreated plywood as a spacer and it is mostly turned back to dust now.



A couple of taps from the 5# sledge loosened things up enough that I could slide the sawzall in and slice the nails off the railings.



I rigged up the ryobi impact drill to remove the big honking lag bolts holding the posts to the rim board. The lags where a pain to remove with a wrench but with the impact driver they just zipped right out...highly recommend one.
Here's a shot of the right side stringer after I removed the top step. its not nailed to the rim joist its nailed to the post! The post which I just un-bolted! Luckily the post was also nailed in place from behind through the rim joist.



Here's a shot after all the treads had been removed. That left side stringer wasn't even toe nailed to that piece of wood supporting it. It was just sitting on top! Also, see the top right side next to the post? Those pieces of 2by12 nailed to the wall? I can't figure out what the heck they where for. They where not structural at all...I think they were just put there to fill up space...and they nailed the heck outta them...

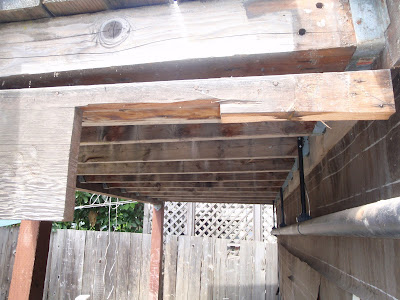

This piece of wood gave me the most trouble. This is the 'dropped rim joist' and a 2by6 nailer behind it. I'll have to use a dropped rim joist also as the last riser will be this framing but I'm thinking that I can figure out a better way to do this.
Anywho I wrestled with this and it finally swung free...



But it got away from me slightly and smacked the bottle of 'blood vodka' off the top of the bar...man that stuff stinks and the red dye is probably going to stain the patio...

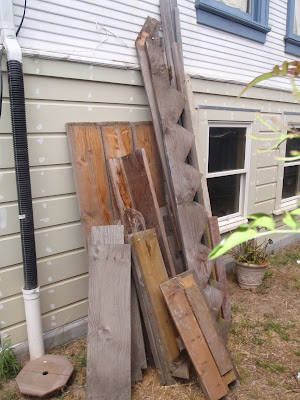

Here's a shot of the demo complete and cleaned up with the wood stacked. It only took me 2 hrs to do which I think is pretty good for a chubby-hubby non-pro with a bad back.



the wood. Most of it looks like all-heart redwood. I'm hoping I can get a Craig's List scavenger to take it away for me.



Next up, I have to lay out and cut the stringers....hope I don't screw up as I didn't buy any extras....
