I'm Not Stringing Ya Along...Stair Building Pt. 2

Or maybe I should of titled this post, 'Your Carriage is Here.' (Framing Humor)

Okay, so, after the deconstruction now I have to turn this pile of wood into a set of stairs...

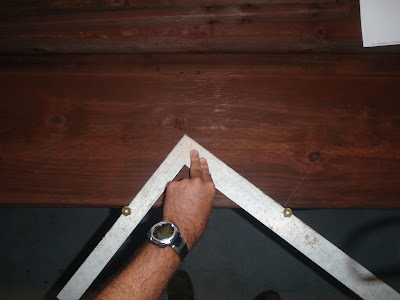

I double checked my measurements after the area was clear and got the same measurements (whew). I set the stair buttons on my framing square to 10" and 7 3/8" and started drawing some lines...then I noticed something...the edges of lumber are pretty rounded..which means I had to kinda guess at the intersection between the previous line and the square...I found that my estimating was not so good...I was getting a systematic error... I needed to figure out a better way...

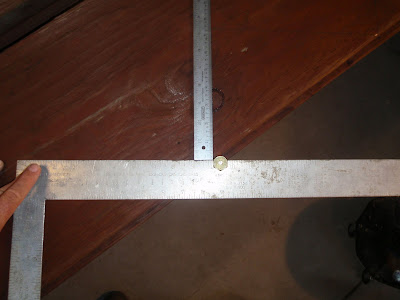

Enter my rule from one of my machine squares. I could line this up on the previous line and extend it down so that I had the square intersecting with the correct extension of my rise/run lines. I guess pros just 'eyeball' it?

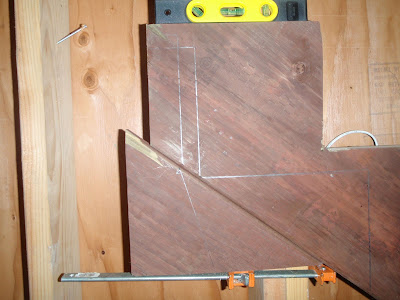

Skipping a bunch of steps...I used my sidewinder to cut the treads then my jigsaw to finish the edges...and look what we have, a sorta finished stringer.



I was trying to figure out how to attach this stringer to the dropped rim joist and came upon this conundrum. The stringer, being at an angle doesn't fit into the fracking joist hanger? All the books I have show the stringers being attached with joist hangers and since the stringers are always on an angle this has to ALWAYS be a problem right? This can't be good can it with the stinger not bearing on the hanger correctly?



I decided that what I am going to do is cut a little wedge from the bottom of these offcuts and glue it to the stringer with some super-fab Elmer's nano-glue. That way the stringer will be in contact 100% with the hanger. Should work right?

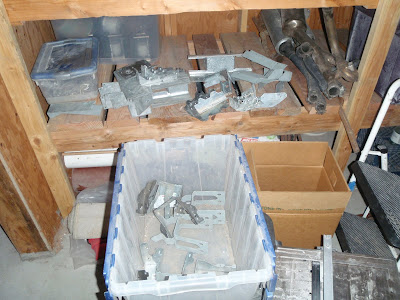

In mucking about with the joist hangers I got to collecting all our Simpson hardware.....dang, we have a lot of it...

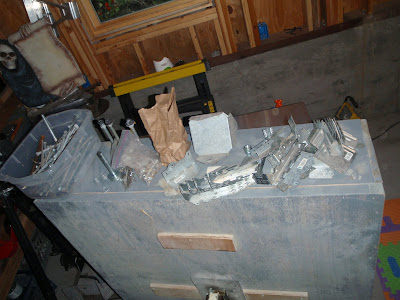

Even more hardware....look at that bin of bolts....that's left over from when we did the deck at our last house! Why did I think I needed 8" lag bolts?



Here's what I decided to do about the dropped rim joist. I used two Simpson brackets and their structural screws to attach it to the 6by6 joist. I also sunk 3 screws into the joist on the edge that you can just see the bottom of here. It feels pretty solid but maybe the left side has a bit more flexion than I'd like. Once I decide where the joist hangers are going to go exactly I might add another bracket on the left hand side.

Watch that first step! Here's a shot of the 2by4 kicker bolted in place.



And voila the stringer fits!!!!



Some how I F'd up the notch for the kicker...I mean I really got it wrong....I'll have to add some wood back in on the left hand side to stabilize the stringer. I plan on attaching the stringers to the kicker with Simpson brackets also.

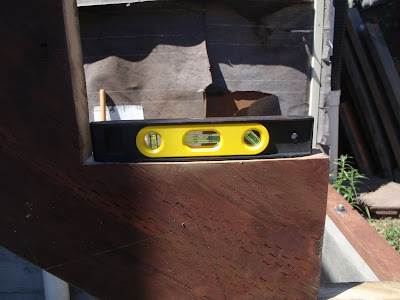

Buuuuuuut, check this out. The fricken stringer is basically perfectly level!! Woo-Hooooooo!!!



Next up is to trace this one good stringer onto the other two (not including the messed up notch for the kicker) and hopefully be able to replicate it pretty closely. Then glue my little wedges into the top edges of all three. While the glue is drying I'll cut all the treads@ 44" wide.

I still haven't exactly figured out where the posts are going to go but I'm working on it....
